INDUSTRIAL FAN SOLUTIONSTransmission Type
Type A direct drive, Type C belt drive or Type D coupling drive
Customization & Export Support
Custom Industrial Fan Services
Configure the drive, rotation, outlet angle, materials, motor and accessories for your project. Yosinda provides performance customization, surface coating options and export packaging.
01 / Project Support
Custom Service
Select Type A direct drive, Type C belt drive or Type D coupling drive. Rotation direction, discharge angle, materials and accessories can be configured for the installation. Air volume and static pressure can be tailored through impeller modification, with standard paint or heavy anti-corrosion coating available.
Request a Quote
Available Customization Options
Configure your fan
Specify the mechanical, electrical and performance options for your operating conditions.
Rotation Direction
Clockwise (right-hand) or counter-clockwise (left-hand), viewed from the motor side
Outlet Angle
0°, 45°, 90°, 135°, 180°, 225°, 270° or 315°
Material
Carbon steel, stainless steel or FRP for corrosion-resistant applications
Motor Options
220V, 380V, 415V and other voltage options; explosion-proof, high-temperature or VFD-compatible motors
Accessories
Inlet and outlet flanges, vibration damper base, protective mesh, silencer and rain hood
Performance Customization
Air volume and static pressure tailored through impeller modification
Surface Coating
Standard industrial paint or heavy-duty anti-corrosion coating
02 / Project Support

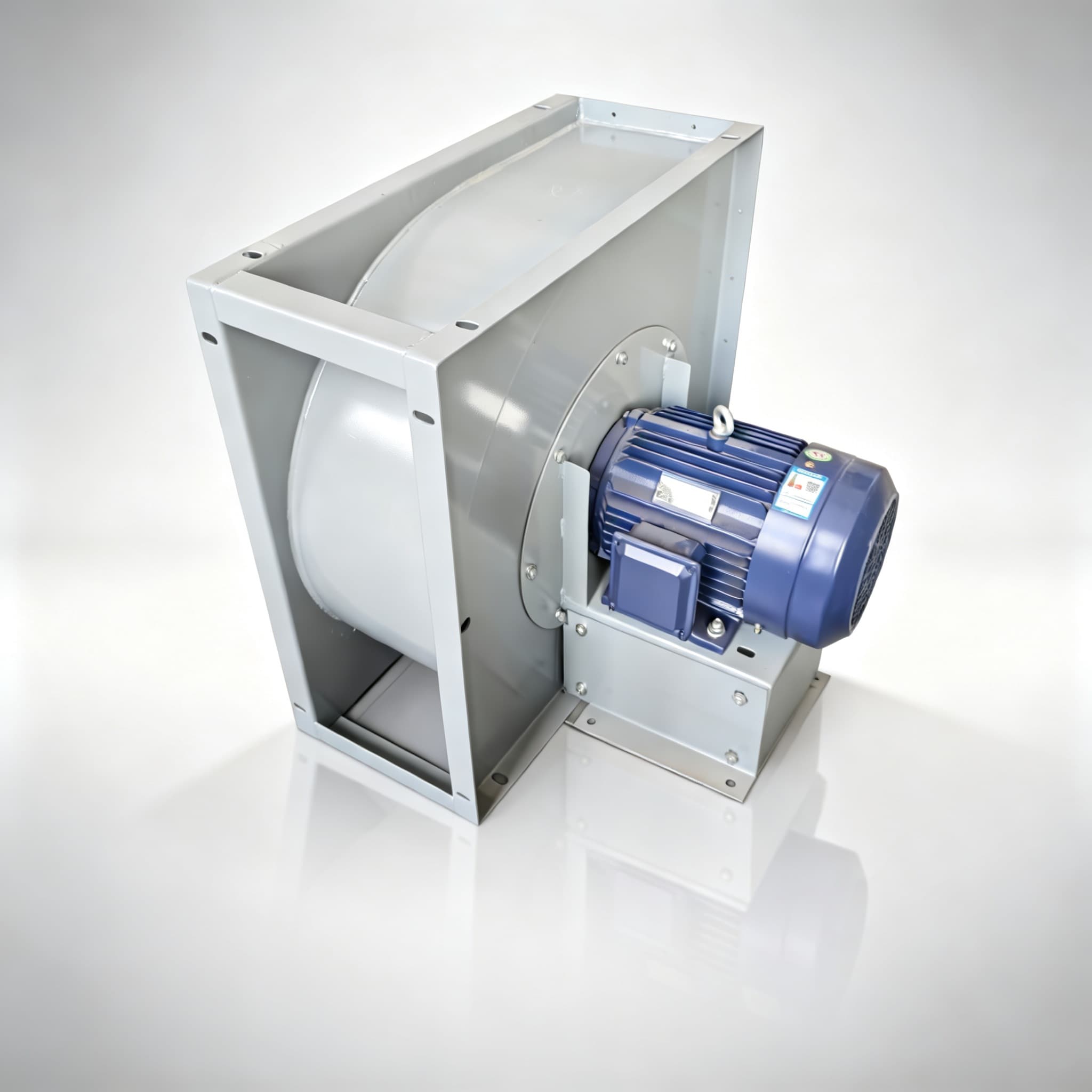

Motor & Voltage Options
Motor options include multiple voltages, explosion-proof motors, high-temperature motors and VFD-compatible motors. Available power specifications include 220V, 380V/50Hz, 415V/50Hz and 460V/60Hz. Confirm voltage, frequency, single-phase or three-phase supply, grid fluctuation and VFD requirements before production. 415V/50Hz and 460V/60Hz motors are not interchangeable.
Request a Quote
03 / Project Support

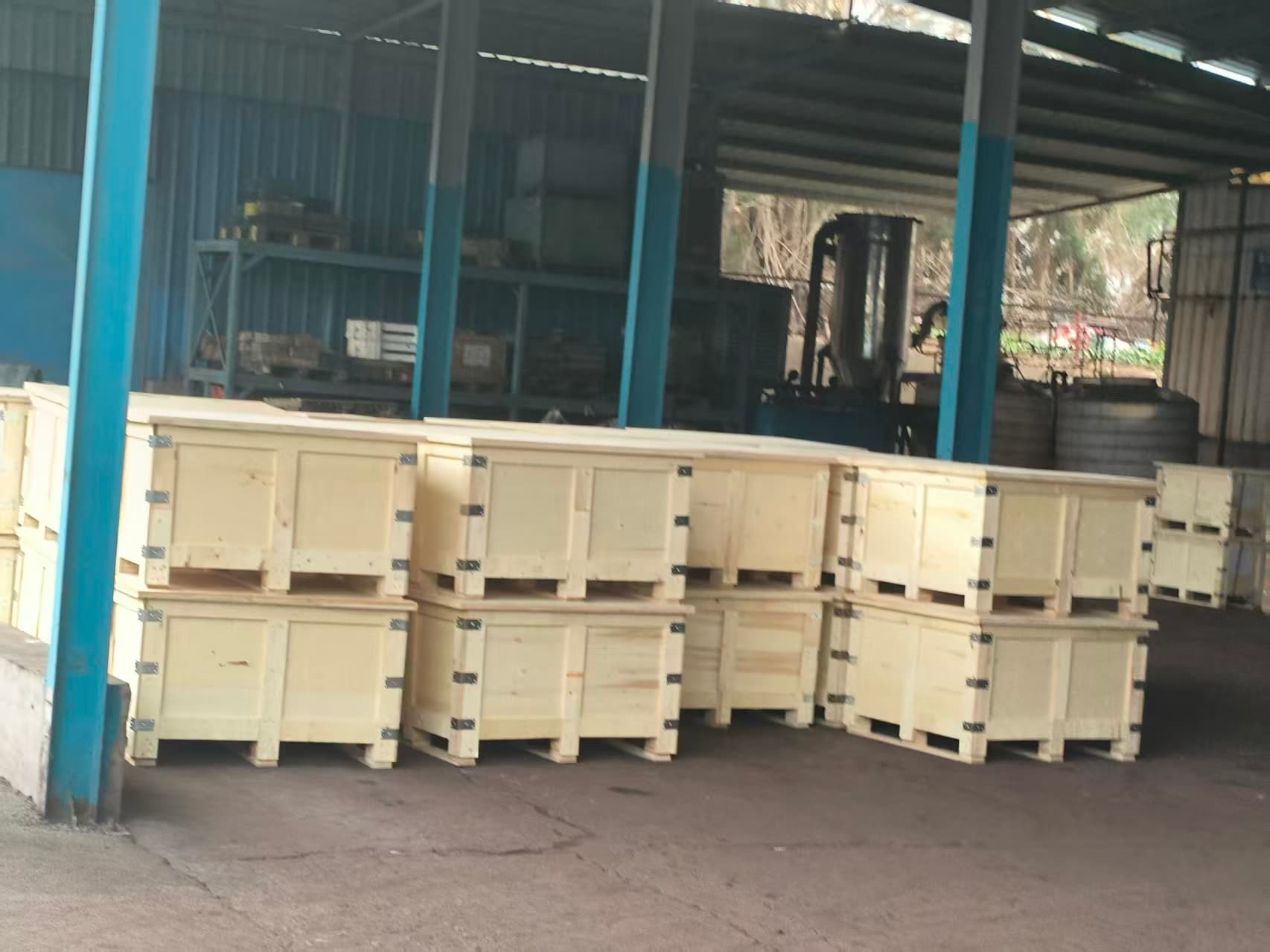

Packaging & Shipment
Fans are packed in fumigation-free plywood cases with internal supports customized to the fan shape. Multi-layer, hot-pressed plywood protects the housing, impeller and motor against impacts and stacking loads during road and sea transport. Moisture-resistant plywood helps protect equipment in humid containers and is lighter than solid timber. The packaging material is recyclable.
Request a Quote
FAQ
Frequently Asked Questions
Which drive types and outlet angles can be customized?
Type A direct drive, Type C belt drive and Type D coupling drive are available. Outlet angles include 0°, 45°, 90°, 135°, 180°, 225°, 270° and 315°. Rotation is specified as clockwise or counter-clockwise when viewed from the motor side.
Which materials and surface coatings are available?
Options include carbon steel, stainless steel and FRP for corrosion-resistant applications, with standard paint or heavy anti-corrosion coating.
Can airflow and static pressure be customized?
Yes. Air volume and static pressure can be tailored through impeller modification. Share the required duty point and operating conditions for selection.
What power supply information is needed before ordering?
Confirm voltage, frequency, single-phase or three-phase supply, grid fluctuation and VFD requirements. 415V/50Hz and 460V/60Hz motors are not interchangeable. Single-phase 220V is available only for fans up to 2.2kW.
How are fans packed for export?
Fumigation-free plywood cases use custom internal supports to secure the fan and protect the housing, impeller and motor during handling and transport.
Project Support
Request a QuoteSpecify your custom fan configuration
Share the airflow, static pressure, operating conditions, drive type, outlet angle and power supply. Our team will review your requirements before production.
